The TR 348 is a light-weighted, compact and easy to use tiller with great manoeuvrability. Equipped with high-quality transmission and Heli coiled tines and 48 cm working width it offers both great performance and durability.
Engine

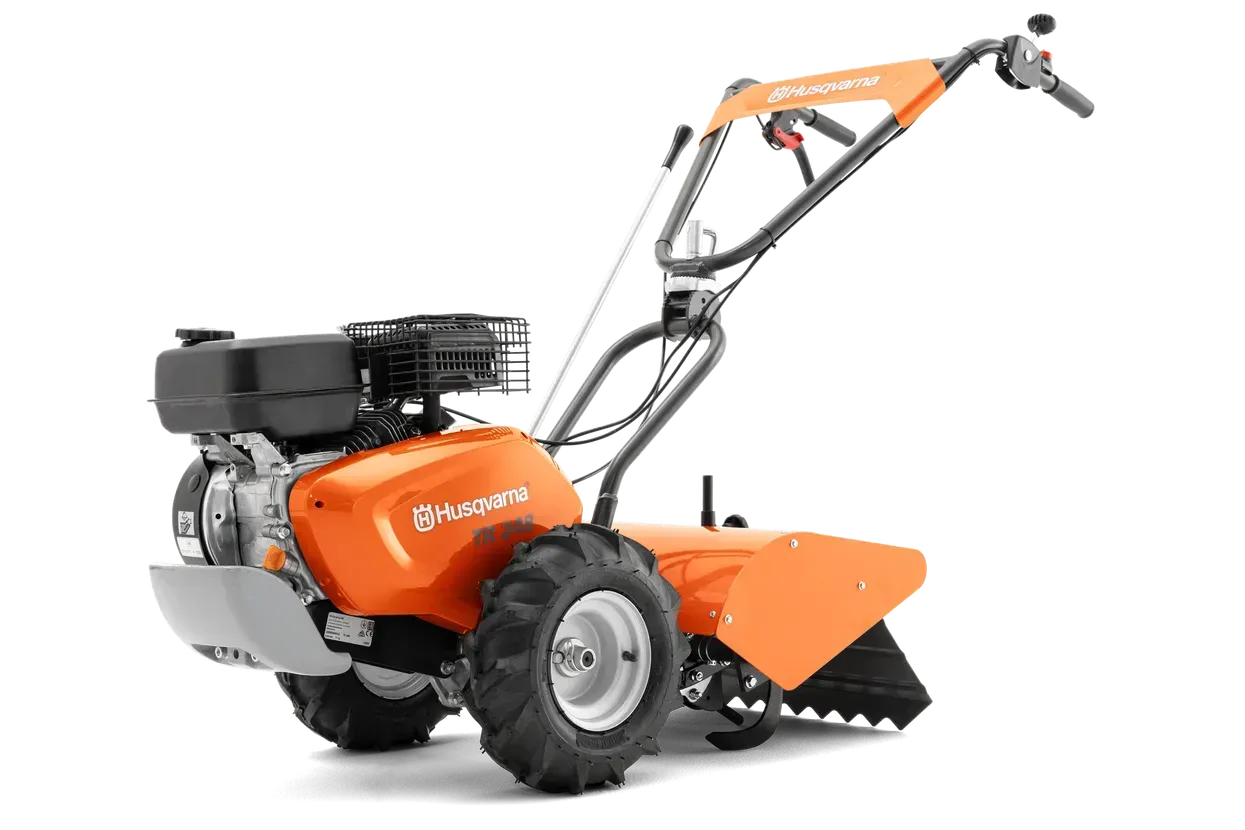

TR 348 PETROL TILLER Rear tine tiller
Art no: 970 65 28‑01
Engine name
R210
Net power at preset rpm Energy 1
4 kW
Net power at preset rpm
3,300 rpm
Air filter type
Oil bath
Fuel tank volume
3.6 l
Power/fuel type
Petrol
Cylinder displacement
212 cm³
Emission
Exhaust emissions (CO₂ EU V) 2
932.85 g/kWh
Equipment
Rubber wheels
Included
Transport wheel/s
Not available
Foldable handlebar
Yes
Horizontally adjustable handlebar
Yes
Vertically adjustable handlebar
Yes
Capacity
Working width
48 cm
Working depth
15 cm
Tine diameter
300 mm
Number of tines
4
Rotational speed (min/max) min
103 rpm
Rotational speed (min/max) max
207 rpm
Cultivator type
Rear-tine
Transmission
Transmission type
Chain/Gear
Transmission steps reverse
1
Transmission steps forward
2
Dimensions
Weight (complete product w/o side packed articles)
